Production Process Support Software for WCL Series WCL plus

Immediate notification of troubles that occur in the production line

Production process support software
for WCL series WCL plus V2.10

WCL plus

icon new

This is a Windows application that can be used in combination with the wireless Andon system AN426II-TH series (for Thailand) and AN920 series (for US, Canada) series for customers considering the following: "I want to immediately respond to problems that occur in the production line" and "I want to analyze the history of troubles that occurred in the production line".

Production process support software for WCL series WCL plus V2.10

  • - The status of calls from the workers and machines in the production line is displayed in real-time on a monitor (web browser) via the LAN.
  • - Calls from workers and machines in the production line are notified via display lights, etc.
  • - Input signals from manufacturing equipment and PLCs are notified via display lights, etc.
  • - The history of trouble occurrences is saved in CSV format.
  • - With a simple UI, I/O signals (16 inputs, 16 outputs) can be controlled with manufacturing equipment and PLCs.

AN426II-TH Series

AN920 Series

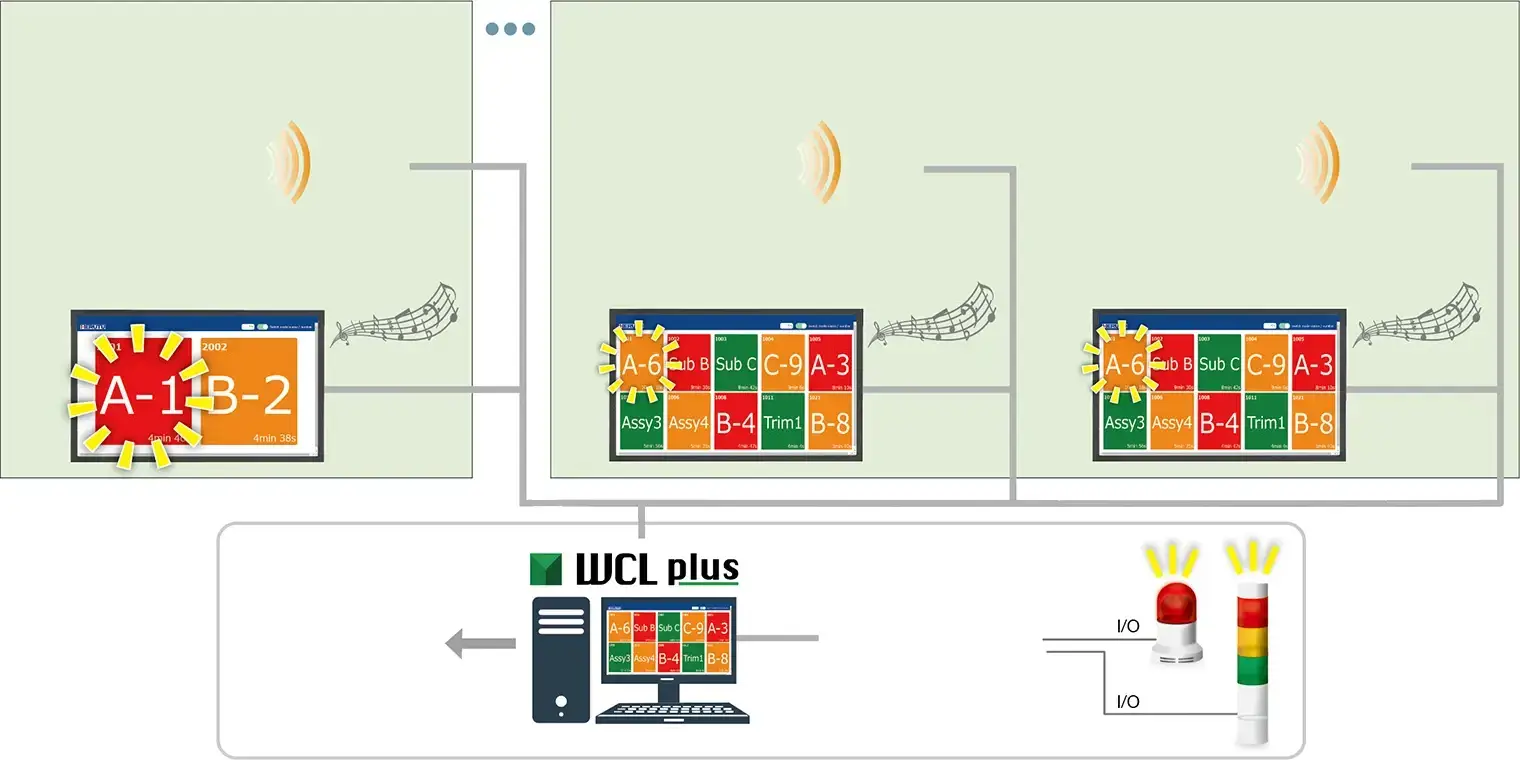

The status of calls from the workers and machines in the production line is displayed in real-time on a monitor (web browser) via the LAN.

Wireless Communication Distance

Indoor : approx. 120m (132yd) Line of Sight : approx. 300m (328yd)

Call Group 1 (Channel 1)

Call Group 10 (Channel 10)

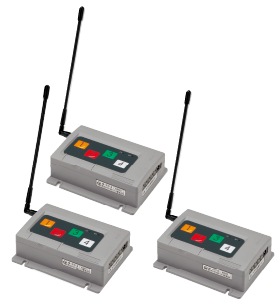

AN426TII
AN426TII

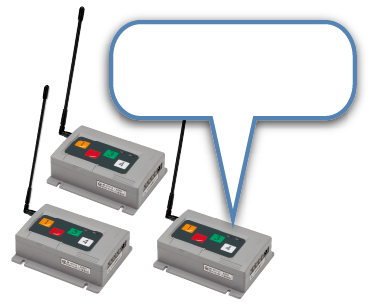

Call from A-1
with "Red"

AN426TII
AN426TII

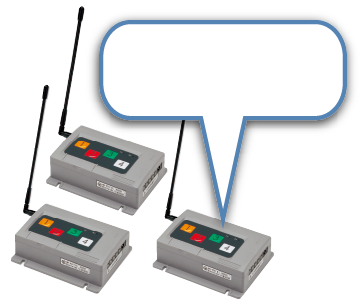

Call from A-6
with "Orange"

Saving the history of trouble occurrences in CSV format
Saving the history of trouble occurrences in CSV format
LAN Connection Type I/O Unit WCP-232-EXL
LAN Connection Type I/O Unit
WCP-232-EXL
Monitor
Melody
Monitor
Melody
Monitor
Melody
  • - The status of calls for each call group is displayed in real-time on a web browser.
  • - The call groups are set for each channel from 1 to 10 on the transmitter AN426TII and receiver WCL-426R (a maximum of 10 groups). A maximum of 800 AN426TII units and a maximum of 10 WCL-426R units can belong to one call group.
  • - Since multiple WCL-426R units can belong to one call group, the status of calls from AN426TII units scattered in distant areas can be displayed on one screen by installing AN426TII and WCL-426R units within the communication distance (approximately 120 m ( 132 yd ) indoors).
  • - For each call group, a maximum of 10 calls can be displayed in the order in which they were called. The display method (lighting / blinking) for the calls can also be selected. If there are 11 or more calls, "the number of hidden calls" will be displayed at the 10th call.
  • - The call will be notified with a "color (orange / red / green)" display and a "melody" based on the content of the call.
  • - As for the information of the calling source AN426TII, the "transmitter settings (channel number / set number / unit number / ID number)" and the "transmitter name registered in WCL plus" are displayed (you can switch between which one is displayed larger).

Wireless Communication Distance

● Standard Mode

Indoor: approx. 500 m (0.31 mi.) Line of sight: approx. 1 km (0.62 mi.)

● Long Range Mode

Indoor: approx. 1 km (0.62 mi.) Line of sight: approx. 2 km (1.24 mi.)

Call Group 1 (Channel 1)

Call Group 10 (Channel 10)

AN920T
AN920T

Call from A-1
with "Red"

AN920T
AN920T

Call from A-6
with "Orange"

Saving the history of trouble occurrences in CSV format
Saving the history of trouble occurrences in CSV format
LAN Connection Type I/O Unit WCP-232-EXL
LAN Connection Type I/O Unit
WCP-232-EXL
Monitor
Melody
Monitor
Melody
Monitor
Melody
  • - The status of calls for each call group is displayed in real-time on a web browser.
  • - The call groups are set for each channel from 1 to 10 on the transmitter AN920T and receiver WCL-920R (a maximum of 10 groups). A maximum of 800 AN920T units and a maximum of 10 WCL-920R units can belong to one call group.
  • - Since multiple WCL-920R units can belong to one call group, the status of calls from AN920TII units scattered in distant areas can be displayed on one screen by installing AN920T and WCL-920R units within the communication distance (approximately 500 m (547 yd) -1 km (0.62 mi) indoors).
  • - For each call group, a maximum of 10 calls can be displayed in the order in which they were called. The display method (lighting / blinking) for the calls can also be selected. If there are 11 or more calls, "the number of hidden calls" will be displayed at the 10th call.
  • - The call will be notified with a "color (orange / red / green)" display and a "melody" based on the content of the call.
  • - As for the information of the calling source AN920T, the "transmitter settings (channel number / set number / unit number / ID number)" and the "transmitter name registered in WCL plus" are displayed (you can switch between which one is displayed larger).

I/O signals can be controlled with a simple UI.

Manufacturing Equipment

PLC

LAN Connection Type I/O Unit
WCP-232-EXL

LAN Connection Type I/O Unit
WCP-232-EXL

Saving the history of trouble occurrences

  • - Using the Windows application “Production Process Support Software for WCL Series WCL plus,” you can save the trouble occurrence history received by up to 10 Andon receivers (WCL-426R/WCL-920R) in the CSV format
  • - Within one factory, up to 10 WCL-426R/ WCL-920R can coexist. Each can wirelessly communicate with up to 800 transmitters (AN426TⅡ/AN920T) which allows for the gathering of reports of trouble occurrences from up to 8,000 locations.

  • Saved Data (CSV Format)
  • ■ Raw data
  • ● Time of occurrence
  • ● Content of trouble
  • ■ Processed data
  • ● Name of transmitter
  • ● Time of occurrence
  • ● Content of trouble
  • ● Time to resolve problem

  • Saved Data (CSV Format)
  • ■ Raw data
  • ● Time of occurrence
  • ● Content of trouble
  • ■ Processed data
  • ● Name of transmitter
  • ● Time of occurrence
  • ● Content of trouble
  • ● Time to resolve problem

Specifications

Supported OS Windows® 10 32-bit / 64-bit to Windows® 11 64-bit
CPU Intel® Core 1.5GHz or above
Required Memory 2GB or above
Resolution Intel® Core 1.5GHz or above
HDD Free space of 100MB or above, excluding data / log
Supported Languages Japanese / English
Supported Web Browsers Google Chrome (Chromium-based web browser)
